Festo
553548

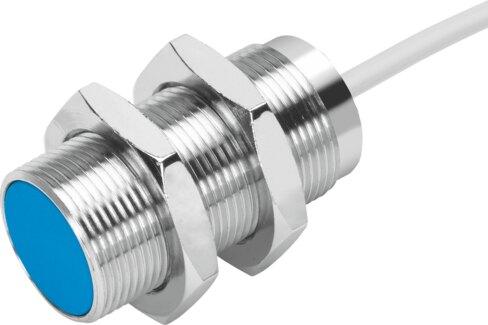

Proximity sensor SIEF-M18B-NS-K-L
The Festo 553548 is an M18 round industrial component featuring a 5 mm rated operating distance, an NPN switching output with an N.O. contact function, and a 3000 Hz max. DC switching frequency. Built with a 2.5 m TPE-U(PU) cable connection, this RoHS-compliant device operates within a 10 V to 30 V DC voltage range and a -30 °C to 70 °C ambient temperature span while conforming to EN 60947-5-2 standards. It includes pulsed short-circuit protection, reverse polarity protection for all electrical connections, and a max. output current of 200 mA alongside RCM, c UL us - Listed (OL), CE, and UKCA markings. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553548
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553548.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Note on materials
- RoHS compliant
- Rated operating distance
- 5 mm
- Ambient temperature
- -30 °C...70 °C
- Repetition accuracy
- 0.28 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- Max. switching frequency DC
- 3000 Hz
- Max. output current
- 200 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PU)
- Size
- M18
- Mounting type
- Flush
- Product weight
- 124 g
- Housing material
- Brass | TPE-O | Chrome-plated
- Switching status indication
- Yellow LED
- Ambient temperature with exible cable installation
- -5 °C...70 °C
- Degree of protection
- IP68
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553548. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
