Festo
553549

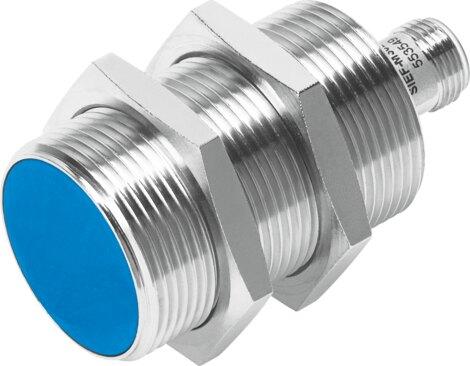

Proximity sensor SIEF-M30B-PS-S-L
The Festo 553549 is a round M30 industrial component featuring a flush mounting type and an EN 60947-5-2 conforming design with a 10 mm rated operating distance. This PNP switching output unit operates within a 10 V to 30 V DC range, delivers a max switching frequency of 2000 Hz at 200 mA, and includes pulsed short-circuit protection and reverse polarity protection for all electrical connections via a 3-pin M12x1 chrome-plated brass plug housing. Certified with RCM and c UL us - Listed (OL) marks alongside CE, UKCA, and RoHS compliances, it functions across an ambient temperature range of -30 °C to 85 °C with a repetition accuracy of 0.55 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553549
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553549.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Note on materials
- RoHS compliant
- Rated operating distance
- 10 mm
- Ambient temperature
- -30 °C...85 °C
- Repetition accuracy
- 0.55 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- Max. switching frequency DC
- 2000 Hz
- Max. output current
- 200 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | M12x1 | Plug
- Material of plug housing
- Brass | Chrome-plated
- Size
- M30
- Mounting type
- Flush
- Product weight
- 100 g
- Housing material
- Brass | Chrome-plated
- Switching status indication
- Yellow LED
- Degree of protection
- IP68
- Resistance to interference from magnetic elds
- Magnetic direct and alternating elds
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553549. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
