Festo
553552

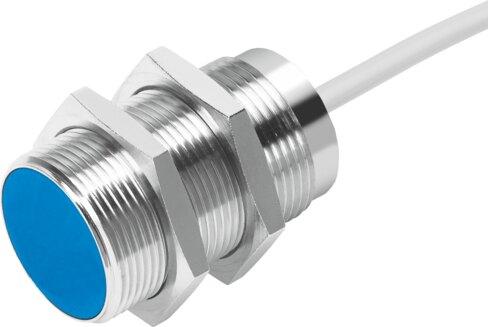

Proximity sensor SIEF-M30B-NS-K-L
The Festo 553552 is an M30 round industrial component featuring a 10 mm rated operating distance and an NPN switching output with a normally open contact function. Built with a 2.5 m TPE-U(PU) cable connection and pulsed short-circuit protection, this 3-wire device operates on a DC voltage range of 10 V to 30 V while conforming to EN 60947-5-2 standards. It carries RCM, c UL us - Listed (OL), CE, and UKCA compliance markings, operates within an ambient temperature range of -30 °C to 70 °C, and maintains a repetition accuracy of 0.55 mm with a maximum DC switching frequency of 2000 Hz. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553552
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553552.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Note on materials
- RoHS compliant
- Rated operating distance
- 10 mm
- Ambient temperature
- -30 °C...70 °C
- Repetition accuracy
- 0.55 mm
- Switching output
- NPN
- Switching element function
- N.O. contact
- Max. switching frequency DC
- 2000 Hz
- Max. output current
- 200 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-wire | Cable
- Cable length
- 2.5 m
- Material of cable sheath
- TPE-U(PU)
- Size
- M30
- Mounting type
- Flush
- Product weight
- 191 g
- Housing material
- Brass | TPE-O | Chrome-plated
- Switching status indication
- Yellow LED
- Ambient temperature with exible cable installation
- -5 °C...70 °C
- Degree of protection
- IP68
