Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

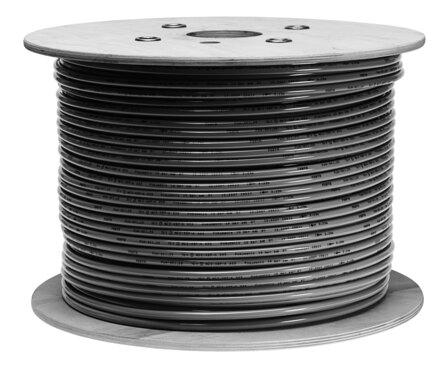

Reference imageConfirm configuration by manufacturer part number.
Festo
553573
Plastic tubing PUN
Engineered with TPE-U(PU) pneumatic tubing material, this Festo industrial component part number 553573 accommodates an outside diameter range of 3 mm to 16 mm and an inside diameter of 2 mm to 11 mm. It supports an operating medium of compressed air as per ISO 8573-1:2010 [7:-:-], features a temperature-dependent operating pressure from -0.95 bar to 30 bar, and is suitable for energy chains within an ambient temperature range of -35 °C to 60 °C. The part holds a TÜV certification under authority B 013277 0527 00, exhibits VDMA24364-B2-L LABS conformity, and is RoHS compliant while available in multiple colors including blue, black, translucent variants, and white. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553573
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553573.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 3 mm...16 mm
- Inside diameter
- 2 mm...11 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.95 bar...30 bar
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -35 °C...60 °C
- Color
- Blue | Brown | Yellow | Green | nature | Red | Black | Silver | translucent blue | translucent yellow | translucent green | translucent red | translucent black | White
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553573. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
