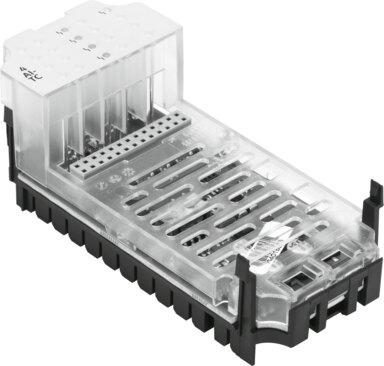

Reference imageConfirm configuration by manufacturer part number.
Festo
553594
Analogue module CPX-4AE-TC
The Festo 553594 is an industrial component featuring 4 inputs with an internal cycle time of 250 ms, operating at a nominal 24 V DC within a voltage range of 18 V to 30 V and consuming 30 mA intrinsically. Measuring 50 mm x 107 mm x 50 mm with an installed weight of 46 g, it is housed in reinforced PA and PC with a CRC of 1 and VDMA24364-B2-L LABS conformity. It provides 1 group and 4 channel diagnostic indicators for wire breaks, limit value violations, and parameterization errors, alongside parameterization capabilities for sensor types, smoothing, and cold junction compensation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553594
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553594.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
- Product weight
- 46 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- Max. cable length
- 50 m | Shielded
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced | PC
- LED indicators
- 1 group diagnostics | 4 channel diagnostics
- Diagnostics
- Wire break per channel | Limit value violation per channel | Parameterization error
- Parameterization
- Limit value monitoring per channel | Cold junction compensation | Unit of measurement | Measured value smoothing | Sensor type per channel | Wire break monitoring per channel
- Internal cycle time
- 250 ms
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Intrinsic current consumption at nominal operating voltage
- 30 mA
- No. of inputs
- 4
- Max. line resistance
- 10 ohm/conductor
- Data format
- 15 bit + sign | Binary representation in tenths of a degree
- Repetition accuracy
- 0.05 % at 25 °C
- Basic error limit at 25°C
- ±0.4%
- Operating error limit related to the ambient temperature range
- ±0.6%
- Sensor type
- Type B
