553888

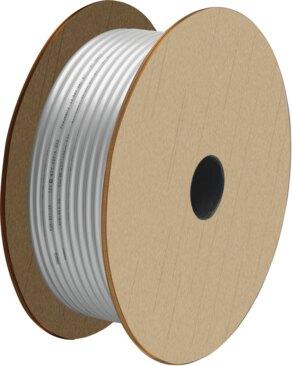

Name: Festo 553888 Plastic tubing PAN-4X0,75-SI-500
Brand: Festo

Plastic tubing PAN-4X0,75-SI-500

The Festo 553888 is a silver TPE-A industrial component featuring a 4 mm outside diameter, a 2.9 mm inside diameter, and a Shore hardness of D 55 +/-3 with RoHS compliant materials. Designed for compressed air operating media as per ISO 8573-1:2010 [7:-:-], this tubing supports temperature-dependent operating pressures from -0.095 MPa to 1.5 MPa and ambient temperatures between -30 °C and 80 °C. It offers a minimum bending radius of 12 mm, a bending radius relevant for flow rate of 18 mm, suitability for energy chains, and a product weight of 0.006 kg/m alongside TÜV and maritime classifications. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 553888
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 553888.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 4 mm
Bending radius relevant for ow rate: 18 mm
Inside diameter: 2.9 mm
Min. bending radius: 12 mm
Tubing characteristics: Suitable for energy chains
Temperature-dependent operating pressure: -0.095 MPa...1.5 MPa | -0.95 bar...15 bar | -13.775 psi...217.5 psi
Certication: TÜV
Maritime classication: See certicate
Certicate issuing authority: 61630/B0 BV | B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -30 °C...80 °C
Product weight by length: 0.006 kg/m
Pneumatic connection: For plug connection outside diameter 4 mm | For barbed tting, inside diameter 3 mm, with union nut | For barbed tting, inside diameter 3 mm
Color: Silver
Shore hardness: D 55 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-A

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 553888. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
