Festo
553889

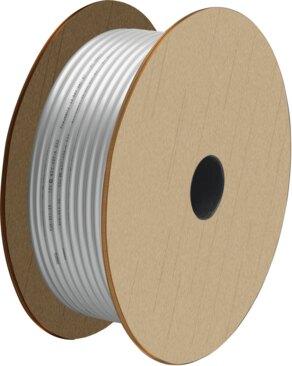

Plastic tubing PAN-6X1-SI-500
The Festo 553889 is a silver TPE-A industrial component featuring a 6 mm outside diameter, a 4 mm inside diameter, and a Shore hardness of D 55 +/-3. This tubing operates within a temperature-dependent pressure range of -0.095 MPa to 1.9 MPa and an ambient temperature range of -30 °C to 80 °C, utilizing compressed air as an operating medium according to ISO 8573-1:2010 [7:-:-]. Certified by TÜV and meeting VDMA24364-B2-L LABS conformity, it supports energy chains with a 14 mm minimum bending radius and a 32 mm bending radius relevant for flow rate. Submit part number 553889, quantity, and application requirements to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553889
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553889.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 6 mm
- Bending radius relevant for ow rate
- 32 mm
- Inside diameter
- 4 mm
- Min. bending radius
- 14 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1.9 MPa | -0.95 bar...19 bar | -13.775 psi...275.5 psi
- Certication
- TÜV
- Maritime classication
- See certicate
- Certicate issuing authority
- 61630/B0 BV | B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Product weight by length
- 0.016 kg/m
- Pneumatic connection
- For plug connection outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut | For barbed tting, inside diameter 4 mm
- Color
- Silver
- Shore hardness
- D 55 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-A
