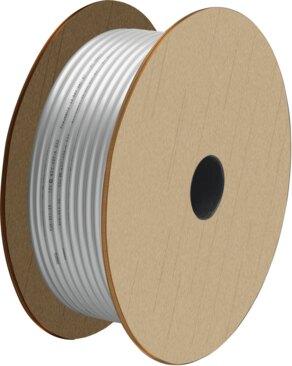

Name: Festo 553890 Plastic tubing PAN-8X1,25-SI-400
Brand: Festo

Plastic tubing PAN-8X1,25-SI-400

The Festo part number 553890 is a silver TPE-A industrial component with an 8 mm outside diameter, a 5.9 mm inside diameter, and a Shore hardness of D 55 +/-3, weighing 0.024 kg/m. Designed with a minimum bending radius of 22 mm, a flow rate relevant bending radius of 43 mm, and suitability for energy chains, it operates within an ambient temperature range of -30 °C to 80 °C and a temperature-dependent operating pressure of -0.095 MPa to 1.5 MPa using compressed air as per ISO 8573-1:2010 [7:-:-]. This RoHS compliant tubing features TÜV certification, VDMA24364-B2-L LABS conformity, and connections for an 8 mm outside diameter plug or a 6 mm inside diameter barbed fitting. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 553890
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 553890.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 8 mm
Bending radius relevant for ow rate: 43 mm
Inside diameter: 5.9 mm
Min. bending radius: 22 mm
Tubing characteristics: Suitable for energy chains
Temperature-dependent operating pressure: -0.095 MPa...1.5 MPa | -0.95 bar...15 bar | -13.775 psi...217.5 psi
Certication: TÜV
Maritime classication: See certicate
Certicate issuing authority: 61630/B0 BV | B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -30 °C...80 °C
Product weight by length: 0.024 kg/m
Pneumatic connection: For plug connection outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut | For barbed tting, inside diameter 6 mm
Color: Silver
Shore hardness: D 55 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-A

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 553890. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
