Festo
553892

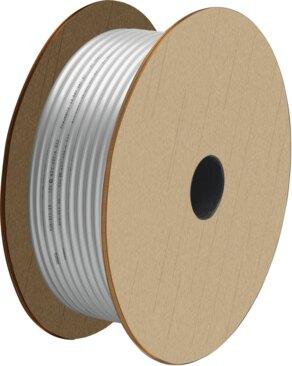

Plastic tubing PAN-12X1,75-SI-200
The Festo 553892 is a silver industrial component made of TPE-A with a 12 mm outside diameter, an 8.4 mm inside diameter, and a D 55 +/-3 Shore hardness. Operating with compressed air as per ISO 8573-1:2010 [7:-:-], this RoHS compliant pneumatic tubing handles a temperature-dependent operating pressure of -0.095 MPa to 1.7 MPa across ambient temperatures from -30 °C to 80 °C. Featuring a weight of 0.06 kg/m, a 29 mm minimum bending radius, and a 64 mm bending radius relevant for flow rate, the tubing is suitable for energy chains and carries TÜV certification. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553892
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553892.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 12 mm
- Bending radius relevant for ow rate
- 64 mm
- Inside diameter
- 8.4 mm
- Min. bending radius
- 29 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1.7 MPa | -0.95 bar...17 bar | -13.775 psi...246.5 psi
- Certication
- TÜV
- Maritime classication
- See certicate
- Certicate issuing authority
- 61630/B0 BV | B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Product weight by length
- 0.06 kg/m
- Pneumatic connection
- For plug connection outside diameter 12 mm
- Color
- Silver
- Shore hardness
- D 55 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-A
