Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

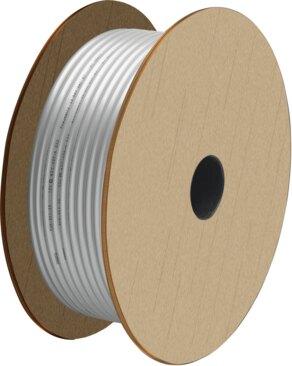

Reference imageConfirm configuration by manufacturer part number.
Festo
553893
Plastic tubing PAN-16X2-SI-100
The Festo 553893 is a silver TPE-A industrial pneumatic tubing component featuring an outside diameter of 16 mm, an inside diameter of 12 mm, and a shore hardness of D 55 +/-3. It operates within a temperature-dependent pressure range of -0.095 MPa to 1.4 MPa across an ambient temperature range of -30 °C to 80 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. This RoHS-compliant tubing is suitable for energy chains, carries a minimum bending radius of 67 mm with a bending radius relevant for flow rate of 94 mm, and holds TÜV certification along with maritime classification. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553893
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553893.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 16 mm
- Bending radius relevant for ow rate
- 94 mm
- Inside diameter
- 12 mm
- Min. bending radius
- 67 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Certication
- TÜV
- Maritime classication
- See certicate
- Certicate issuing authority
- 61630/B0 BV | B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Product weight by length
- 0.092 kg/m
- Pneumatic connection
- For plug connection outside diameter 16 mm
- Color
- Silver
- Shore hardness
- D 55 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553893. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
