Festo
553895

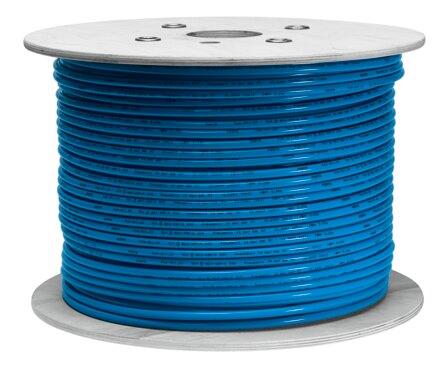

Plastic tubing PAN-6X1-BL-500
Manufactured by Festo, this blue industrial pneumatic tubing features a 6 mm outside diameter, a 4 mm inside diameter, and a D 55 +/-3 Shore hardness constructed from TPE-A material. The component operates within a temperature-dependent pressure range of -0.095 MPa to 1.9 MPa across ambient temperatures from -30 °C to 80 °C, supports compressed air media conforming to ISO 8573-1:2010 [7:-:-], and holds TÜV certification under authority B 013277 0527 00 with VDMA24364-B2-L LABS conformity. Weighing 0.016 kg/m with RoHS-compliant materials, it accommodates energy chains, a 14 mm minimum bending radius, a 32 mm bending radius relevant for flow rate, and multiple pneumatic connection types including 6 mm outside diameter plug connections. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553895
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553895.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 6 mm
- Bending radius relevant for ow rate
- 32 mm
- Inside diameter
- 4 mm
- Min. bending radius
- 14 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1.9 MPa | -0.95 bar...19 bar | -13.775 psi...275.5 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Product weight by length
- 0.016 kg/m
- Pneumatic connection
- For plug connection outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut | For barbed tting, inside diameter 4 mm
- Color
- Blue
- Shore hardness
- D 55 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553895. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
