Festo
553897

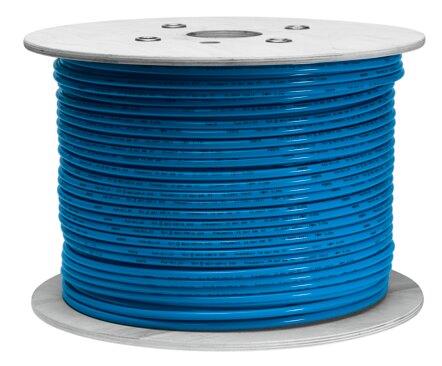

Plastic tubing PAN-10X1,5-BL-300
The Festo 553897 is a blue TPE-A industrial tubing component with an outside diameter of 10 mm, an inside diameter of 7 mm, and a shore hardness of D 55 +/-3. It features a minimum bending radius of 27 mm, a flow rate bending radius of 58 mm, and is suitable for energy chains within an ambient temperature range of -30 °C to 80 °C. Operating with compressed air as per ISO 8573-1:2010 [7:-:-], this TÜV-certified part supports a temperature-dependent operating pressure from -0.095 MPa to 1.7 MPa and complies with VDMA24364-B2-L LABS conformity and RoHS material directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553897
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553897.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 10 mm
- Bending radius relevant for ow rate
- 58 mm
- Inside diameter
- 7 mm
- Min. bending radius
- 27 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1.7 MPa | -0.95 bar...17 bar | -13.775 psi...246.5 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Product weight by length
- 0.042 kg/m
- Pneumatic connection
- For plug connection outside diameter 10 mm
- Color
- Blue
- Shore hardness
- D 55 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553897. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
