Festo
553899

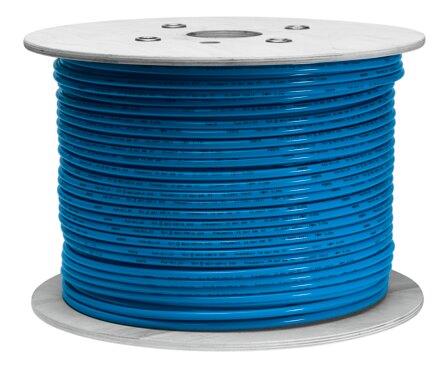

Plastic tubing PAN-16X2-BL-100
The Festo part number 553899 is a blue TPE-A industrial component with an outside diameter of 16 mm, an inside diameter of 12 mm, and a product weight of 0.092 kg/m. Designed with a Shore hardness of D 55 +/-3 and a minimum bending radius of 67 mm (94 mm relevant for flow rate), it operates within a temperature-dependent pressure range of -0.095 MPa to 1.4 MPa (-13.775 psi to 203 psi) and an ambient temperature range of -30 °C to 80 °C. This TÜV-certified tubing (certificate B 013277 0527 00) uses compressed air as an operating medium according to ISO 8573-1:2010 [7:-:-], features VDMA24364-B2-L LABS conformity, is RoHS compliant, and is suitable for energy chains via a plug connection for 16 mm outside diameter. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553899
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553899.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 16 mm
- Bending radius relevant for ow rate
- 94 mm
- Inside diameter
- 12 mm
- Min. bending radius
- 67 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Product weight by length
- 0.092 kg/m
- Pneumatic connection
- For plug connection outside diameter 16 mm
- Color
- Blue
- Shore hardness
- D 55 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-A
