Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
553900

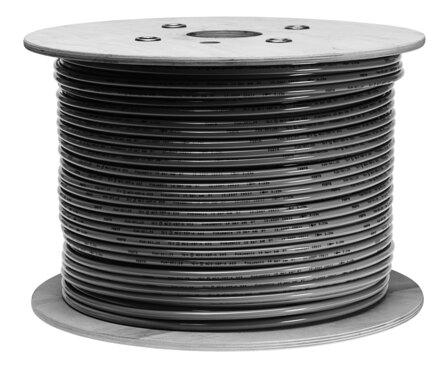

Plastic tubing PAN-4X0,75-SW-500
The Festo 553900 is an industrial component featuring a black TPE-A pneumatic tubing construction with a 4 mm outside diameter, a 2.9 mm inside diameter, and a product weight of 0.006 kg/m. Designed with a Shore hardness of D 55 +/-3 and suitability for energy chains, this RoHS-compliant part supports an ambient temperature range of -30 °C to 80 °C and a temperature-dependent operating pressure of -0.095 MPa to 1.5 MPa for compressed air as per ISO 8573-1:2010 [7:-:-]. It holds TÜV certification under certificate issuing authority B 013277 0527 00 and exhibits VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553900
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553900.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 4 mm
- Bending radius relevant for ow rate
- 18 mm
- Inside diameter
- 2.9 mm
- Min. bending radius
- 12 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1.5 MPa | -0.95 bar...15 bar | -13.775 psi...217.5 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Product weight by length
- 0.006 kg/m
- Pneumatic connection
- For plug connection outside diameter 4 mm | For barbed tting, inside diameter 3 mm, with union nut | For barbed tting, inside diameter 3 mm
- Color
- Black
- Shore hardness
- D 55 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553900. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
