Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

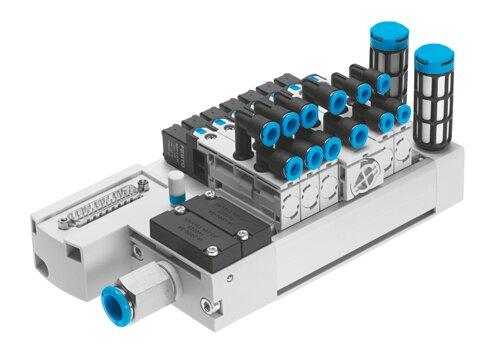

Reference imageConfirm configuration by manufacturer part number.
Festo
553983
Valve manifold VTUB-12
Engineered with a fixed grid valve manifold design supporting up to 35 valve positions and 18 pressure zones, this Festo industrial component part number 553983 features fieldbus or multi-pin electrical actuation and operates with compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.28 MPa to 0.8 MPa (2.8 bar to 8 bar). The unit provides an IP65 degree of protection, PELV protection against direct and indirect contact, and functions within a medium and ambient temperature range of -5 °C to 60 °C using NBR and TPE-U(PU) seals. Compliance includes CE marking as per the EU EMC directive, UKCA marking to UK instructions for EMC and RoHS, and KC-EMV characters, with operation possible with oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 553983
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 553983.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- Fieldbus | Multi-pin
- Electrical I/O system
- No
- Valve terminal type
- 23
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -5 °C...60 °C
- Ambient temperature
- -5 °C...60 °C
- Degree of protection
- IP65
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Protection against direct and indirect contact
- PELV
- Operating pressure
- 0.28 MPa...0.8 MPa | 2.8 bar...8 bar
- Information on operating pressure
- 0 - 8 bar with external pilot air
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Seals material
- NBR | TPE-U(PU)
- Valve manifold design
- Fixed grid
- Max. no. of valve positions
- 35
- Max. no. of pressure zones
- 18
- Actuation type
- Electrical
- Valve function
- 3/2-way, closed, monostable | 3/2-way, monostable, open | 5/2-way, bistable | 5/2-way, monostable
- Valve size
- 12 mm | 24 mm
- Max. standard nominal ow rate
- 400 l/min at 12 mm
- Width
- 12 mm | 24 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 553983. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
