Name: Festo 554034 Connecting cable NEBU-M12G5-E-2.5-W2-M8G4-V1
Brand: Festo

Connecting cable NEBU-M12G5-E-2.5-W2-M8G4-V1

This Festo industrial component, part number 554034, is a 74 g cable designation unit featuring 2x label holders and conformity to EN 61076-2-101 and EN 61076-2-104 standards. Electrical connection 1 functions as the field device end via a straight, round M12x1 A-coded socket with 5 pins (2 occupied) and a screw-type lock, while electrical connection 2 acts as the control side through a straight, round M8x1 A-coded plug with 4 pins (2 occupied) and a screw-type lock. Explosion prevention and protection require observing the certificate information for ATEX Zone 2 and Zone 22 classifications. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 554034
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 554034.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101 | EN 61076-2-104
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Cable designation: With 2x label holders
Product weight: 74 g
Electrical connection 1, function: Field device end
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight

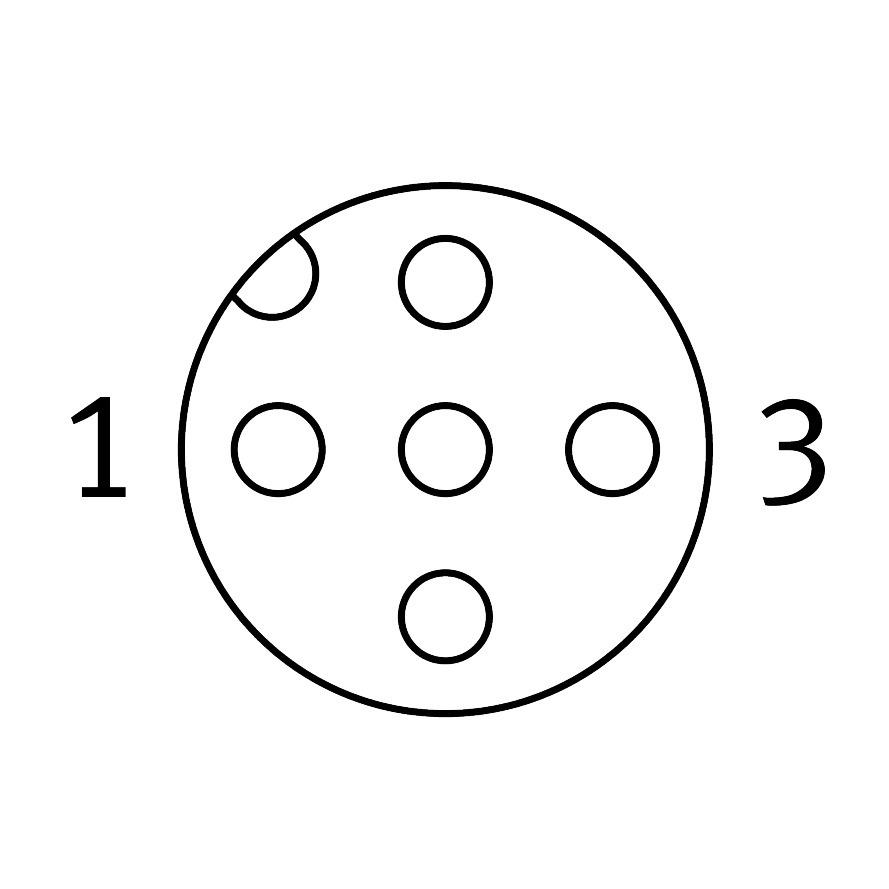

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 2
Electrical connection 1, type of mounting: Screw-type lock
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 2, number of pins/wires: 4
Electrical connection 2, occupied pins/wires: 2
Electrical connection 2, type of mounting: Screw-type lock
DC operating voltage range: 0 V...30 V
Operating voltage range AC: 0 V...30 V
Current rating at 40° C: 3 A
Surge resistance: 0.8 kV
Cable length: 2.5 m
Cable characteristic: Suitable for energy chains

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 554034. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
