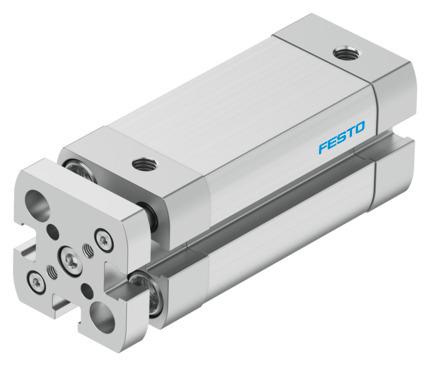

Reference imageConfirm configuration by manufacturer part number.
Festo
554210
Compact cylinder ADNGF-12-30-P-A
The Festo 554210 is a double-acting industrial component featuring a 12 mm piston diameter, a 30 mm stroke, and a profile barrel structural design built to ISO 21287 norms. Operating between 1.5 bar and 10 bar with compressed air, it delivers a theoretical advancing force of 68 N and a retracting force of 51 N at 6 bar while incorporating elastic cushioning rings at both ends and a guide rod with a yoke for anti-torsion protection. This unit weighs 119 g, offers a moving mass of 30 g, and functions across an ambient temperature range of -20 °C to 80 °C with CRC 2 moderate corrosion stress resistance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 554210
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 554210.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 30 mm
- Piston diameter
- 12 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.07 J
- Theoretical force at 6 bar, retracting
- 51 N
- Theoretical force at 6 bar, advancing
- 68 N
- Moving mass
- 30 g
- Product weight
- 119 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Wrought aluminum alloy, anodized
- Seals material
- TPE-U(PUR)
- End plate material
- Wrought aluminum alloy, anodized
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- Wrought aluminum alloy, smooth-anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 554210. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
