Festo
554286

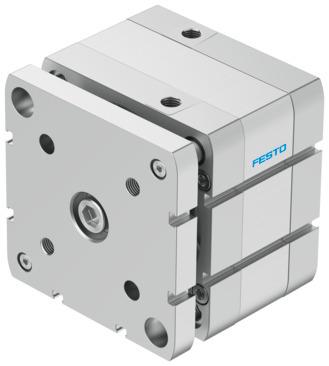

Compact cylinder ADNGF-100-10-P-A
The Festo part number 554286 is a double-acting industrial component featuring a 100 mm piston diameter, a 10 mm stroke, and a profile barrel structural design based on the ISO 21287 norm. Operating within a pressure range of 1 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4], this unit incorporates elastic cushioning rings at both ends, a guide rod with yoke for anti-torsion protection, and position sensing via proximity switch. It delivers a theoretical retracting force of 4524 N and advancing force of 4712 N at 6 bar, with a product weight of 2321 g and a moving mass of 1109 g, rated for ambient temperatures from -20 °C to 80 °C and moderate corrosion stress (CRC 2). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 554286
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 554286.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 100 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2.5 J
- Theoretical force at 6 bar, retracting
- 4524 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass
- 1109 g
- Product weight
- 2321 g
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Die-cast aluminum, coated
- Seals material
- TPE-U(PUR)
- End plate material
- Wrought aluminum alloy, anodized
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- Wrought aluminum alloy, smooth-anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 554286. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
