Reference imageConfirm configuration by manufacturer part number.
Festo
555449

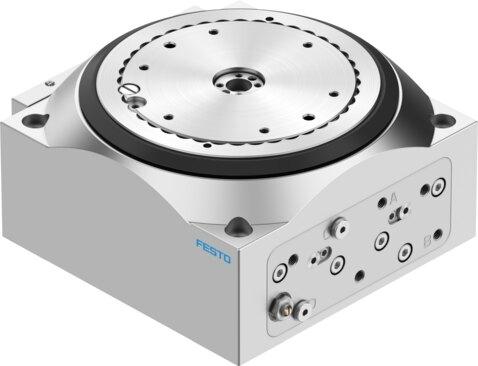

Rotary indexing table DHTG-90-3-A
The Festo 555449 is a double-acting industrial component featuring a size 90 structural design with a gear coupling, gear rack and pinion, and positively driven motion sequence, operating within a pressure range of 0.3 MPa to 0.8 MPa on compressed air as per ISO 8573-1:2010 [7:4:4]. It offers an adjustable pneumatic shock absorber with a hard characteristic curve, achieving a plate parallelism of 0.04 mm, axial eccentricity of 0.02 mm, concentricity of 0.02 mm, and a swivel angle repetition accuracy of 0.03 deg. Featuring an IP54 degree of protection, CRC 2 moderate corrosion stress resistance, and position sensing for inductive sensors, this unit functions in ambient temperatures from 5 °C to 60 °C and permits oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555449
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555449.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 90
- Parallelism of plate
- 0.04 mm
- Axial eccentricity of plate
- 0.02 mm
- Plate concentricity
- 0.02 mm
- Repetition accuracy of swivel angle
- 0.03 deg
- Cushioning
- Pneumatic shock absorber, hard characteristic curve, adjustable
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Gear coupling | Gear rack/pinion | Positively driven motion sequence
- Position sensing
- For inductive sensors
- Spacing
- 3
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...80 °C
- Noise level
- 70 dB(A)
- Degree of protection
- IP54
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 300 kgcm²
- Max. axial force static
- 2000 N
- Max. pull-out torque static
- 150 Nm
- Max. radial force static
- 5000 N
- Max. tangential torque static
- 150 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555449. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
