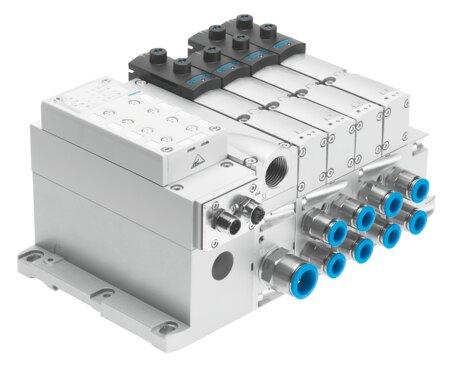

Reference imageConfirm configuration by manufacturer part number.
Festo
555564
Valve manifold VTSA-ASI
The Festo 555564 is an industrial component featuring fieldbus electrical actuation, an electrical I/O system, and valve terminal type 44. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and an ambient temperature range of -5 °C to 50 °C. The unit includes ATEX certification for Zone 2 gas explosion protection (Category II 3G) and carries an IP65 degree of protection. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555564
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555564.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- Fieldbus
- Electrical I/O system
- Yes
- Valve terminal type
- 44
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP65
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Operating pressure for valve manifold with internal pilot air supply
- 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- BIA | C-Tick | c UL us - recognized (OL)
- Explosion prevention and protection
- Zone 2 (ATEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex nA IIC T3 X Gc
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Note on materials
- RoHS compliant
- Valve manifold design
- Modular, pneumatic valve sizes can be mixed
- Actuation type
- Electrical
- Valve function
- 2x2/2 closed, monostable | 2x3/2 closed, monostable
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555564. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
