Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

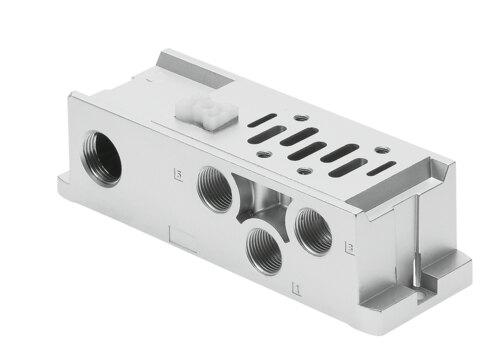

Reference imageConfirm configuration by manufacturer part number.
Festo
555636
Sub-base VABS-S2-2S-G12-K1
The Festo 555636 is an industrial component featuring a width of 52 mm, a cast aluminum sub-base, and a product weight of 815 g, manufactured in accordance with ISO 5599-2 and offering an operating pressure range of -0.09 MPa to 1 MPa. Designed for through-hole mounting in any position, it operates on 110 V AC or 24 V DC with a 2 A current rating at 40°C, an external pilot air supply port, and compressed air as the operating medium per ISO 8573-1:2010 [7:4:4]. The unit provides IP65 and NEMA 4 degrees of protection in the mounted state with a contamination level of 3, a surge resistance of 4 kV, and RoHS-compliant materials that permit oil-lubricated operation. Submit your exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555636
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555636.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 52 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- External
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Operating voltage range AC
- 110 V
- DC operating voltage range
- 24 V
- Surge resistance
- 4 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 815 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555636. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
