Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

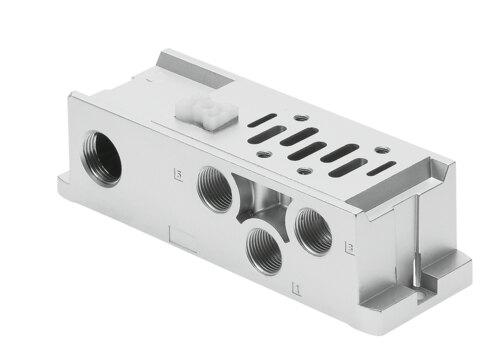

Reference imageConfirm configuration by manufacturer part number.
Festo
555638
Sub-base VABS-S2-2S-G12-C1
Engineered with a width of 52 mm based on the ISO 5599-2 norm, this Festo industrial component features a product weight of 815 g and permits mounting in any position using a through-hole. The unit operates within a pressure range of -0.09 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], supporting both 110 V AC and 24 V DC operating voltages with an external pilot air supply port. Featuring IP65 and NEMA 4 protection in the mounted state along with a contamination level of 3, the hardware is rated for an ambient temperature range of -5 °C to 50 °C and a current rating of 2 A at 40 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555638
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555638.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 52 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- External
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Operating voltage range AC
- 110 V
- DC operating voltage range
- 24 V
- Surge resistance
- 4 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 815 g
- Connection cross section
- 0.08 mm²...0.75 mm²
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555638. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
