Festo
555639

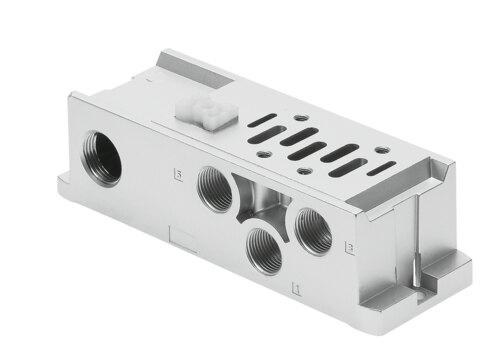

Sub-base VABS-S2-2S-N12-C1
The Festo 555639 is an industrial component measuring 52 mm in width, weighing 815 g, and built on the ISO 5599-2 norm for mounting with a through-hole in any position. It operates with compressed air per ISO 8573-1:2010 [7:4:4] at pressures from -0.9 bar to 10 bar, featuring external pilot air supply, an AC operating voltage of 110 V, a DC operating voltage of 24 V, and a current rating of 2 A at 40° C. Certified to IP65 and NEMA 4 protection in the mounted state with a contamination level of 3 and 4 kV surge resistance, this RoHS-compliant unit operates within an ambient temperature range of -5 °C to 50 °C, exhibits a corrosion resistance class of 0, and permits oil lubrication with connection cross sections spanning 0.08 mm² to 0.75 mm². Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555639
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555639.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 52 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- External
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Operating voltage range AC
- 110 V
- DC operating voltage range
- 24 V
- Surge resistance
- 4 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 815 g
- Connection cross section
- 0.08 mm²...0.75 mm²
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Cast aluminum
