Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

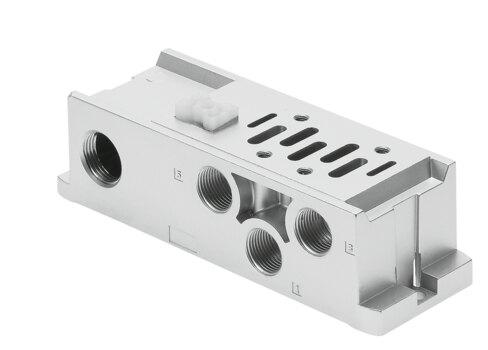

Reference imageConfirm configuration by manufacturer part number.
Festo
555642
Sub-base VABS-S2-2S-N12-B-K1
The Festo 555642 is an industrial component featuring a width of 52 mm, a cast aluminum sub-base, and an overall product weight of 815 g based on the ISO 5599-2 norm. Engineered for internal pilot air supply, it operates at a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and supports an AC operating voltage of 110 V alongside a DC operating voltage of 24 V. With IP65 and NEMA 4 degree of protection in the mounted state, this RoHS-compliant unit accommodates compressed air media per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555642
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555642.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 52 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- Internal
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Operating voltage range AC
- 110 V
- DC operating voltage range
- 24 V
- Surge resistance
- 4 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 815 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555642. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
