Festo
555643

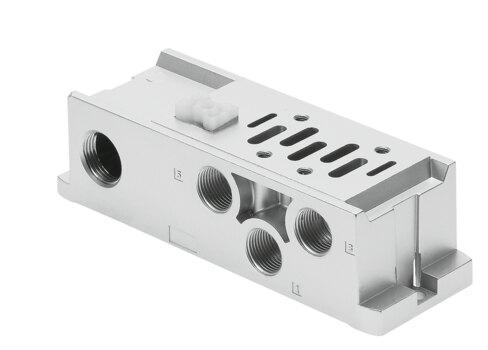

Sub-base VABS-S2-2S-G12-B-C1
The Festo part number 555643 is an industrial component measuring 52 mm in width and weighing 815 g, manufactured in accordance with the ISO 5599-2 norm. This unit operates with an operating pressure ranging from -0.9 bar to 10 bar, an AC operating voltage of 110 V, and a DC operating voltage of 24 V, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with internal pilot air supply. Featuring IP65 and NEMA 4 degree of protection in mounted state and an ambient temperature range of -5 °C to 50 °C, it mounts via through-hole and supports a connection cross section of 0.08 mm² to 0.75 mm². Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555643
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555643.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 52 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- Internal
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Operating voltage range AC
- 110 V
- DC operating voltage range
- 24 V
- Surge resistance
- 4 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 815 g
- Connection cross section
- 0.08 mm²...0.75 mm²
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555643. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
