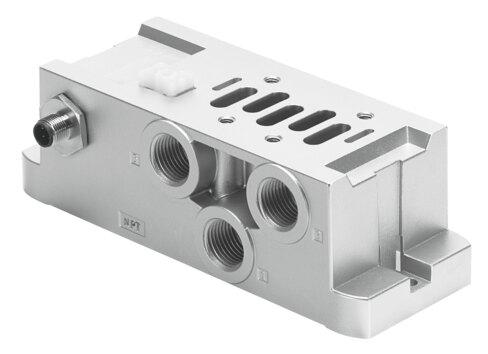

Reference imageConfirm configuration by manufacturer part number.
Festo
555645
Sub-base VABS-S2-2S-G12-B-R3
Engineered with a 52 mm width and built on the ISO 5599-2 norm, this Festo industrial component features a cast aluminum sub-base and an overall product weight of 815 g with through-hole mounting. The unit operates within a pressure range of -0.09 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], supporting internal pilot air supply and oil-lubricated operation. It functions at a 24 V DC operating voltage range with a 2 A current rating at 40° C, 0.8 kV surge resistance, and contamination level 3, while achieving IP65 and NEMA 4 protection in the mounted state across ambient temperatures from -5 °C to 50 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555645
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555645.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 52 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pilot air supply port
- Internal
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- DC operating voltage range
- 24 V
- Surge resistance
- 0.8 kV
- Current rating at 40° C
- 2 A
- Contamination level
- 3
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4 | In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 815 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Material of sub-base
- Cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555645. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
