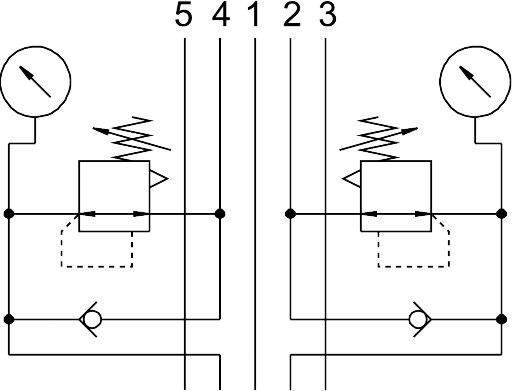

Reference imageConfirm configuration by manufacturer part number.
Festo
555763
Regulator plate VABF-S1-2-R4C2-C-6
The Festo part number 555763 is an industrial component featuring a width of 54 mm and built to the ISO 5599-1 norm for pneumatic vertical stacking as a pressure regulator for ports 2 and 4. It provides a constant output pressure with secondary exhausting across a pressure regulation range of 0.1 MPa to 0.6 MPa (1 bar to 6 bar, or 14.5 psi to 87 psi) and accepts an inlet pressure from 0.05 MPa to 1 MPa (0.5 bar to 10 bar, or 7.25 psi to 145 psi). This unit offers an IP65 and NEMA 4 degree of protection, operates within an ambient temperature range of -5 °C to 50 °C, weighs 1990 g, and mounts in any position on a manifold sub-base or individual sub-base. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555763
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555763.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 54 mm
- Based on norm
- ISO 5599-1
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 2 and 4
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range MPa
- 0.1 MPa...0.6 MPa
- Pressure regulation range
- 1 bar...6 bar
- Pressure regulation range psi
- 14.5 psi...87 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- Inlet pressure 1 MPa
- 0.05 MPa...1 MPa
- Inlet pressure 1 psi
- 7.25 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 1990 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
