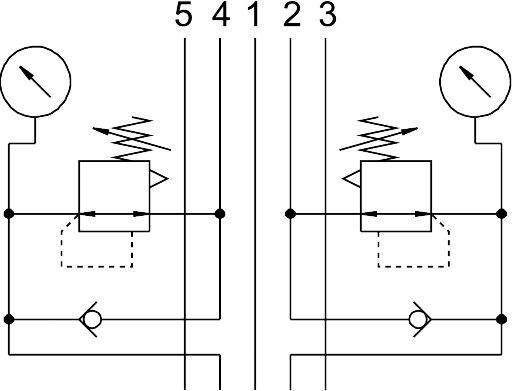

Reference imageConfirm configuration by manufacturer part number.
Festo
555764
Regulator plate VABF-S1-2-R4C2-C-10
The Festo part number 555764 is an industrial pneumatic vertical stacking pressure regulator built on the ISO 5599-1 norm with a width of 54 mm and a product weight of 1990 g. This component features a constant output pressure controller function with secondary exhausting, supporting a pressure regulation range of 0.1 MPa to 1 MPa (1 bar to 10 bar, or 14.5 psi to 145 psi) and an inlet pressure range of 0.05 MPa to 1 MPa (0.5 bar to 10 bar, or 7.25 psi to 145 psi). Designed with an IP65 and NEMA 4 degree of protection and a CRC 0 corrosion resistance class, it operates within an ambient temperature range of -5 °C to 50 °C using compressed air per ISO 8573-1:2010 [7:4:4] for mounting on an individual or manifold sub-base in any position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555764
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555764.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 54 mm
- Based on norm
- ISO 5599-1
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 2 and 4
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range MPa
- 0.1 MPa...1 MPa
- Pressure regulation range
- 1 bar...10 bar
- Pressure regulation range psi
- 14.5 psi...145 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- Inlet pressure 1 MPa
- 0.05 MPa...1 MPa
- Inlet pressure 1 psi
- 7.25 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 1990 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555764. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
