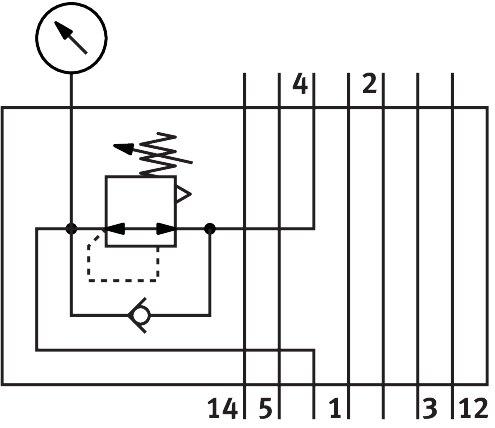

Reference imageConfirm configuration by manufacturer part number.
Festo
555775
Regulator plate VABF-S2-2-R3C2-C-6
The Festo part number 555775 is an industrial component designed as a pneumatic vertical stacking pressure regulator for size 4, featuring a constant output pressure controller function with secondary exhausting and an ISO 5599-2 compliance base. This unit operates with a pressure regulation range of 1 bar to 6 bar (0.1 MPa to 0.6 MPa, 14.5 psi to 87 psi) and an inlet pressure range of 0.5 bar to 10 bar (0.05 MPa to 1 MPa, 7.25 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4]. Built with a width of 54 mm, a weight of 1230 g, IP65 and NEMA 4 protection degrees, and an ambient temperature range of -5 °C to 50 °C, it mounts in any position on a manifold or individual sub-base. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555775
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555775.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 54 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 4
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range MPa
- 0.1 MPa...0.6 MPa
- Pressure regulation range
- 1 bar...6 bar
- Pressure regulation range psi
- 14.5 psi...87 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- Inlet pressure 1 MPa
- 0.05 MPa...1 MPa
- Inlet pressure 1 psi
- 7.25 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 1230 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555775. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
