Festo
555781

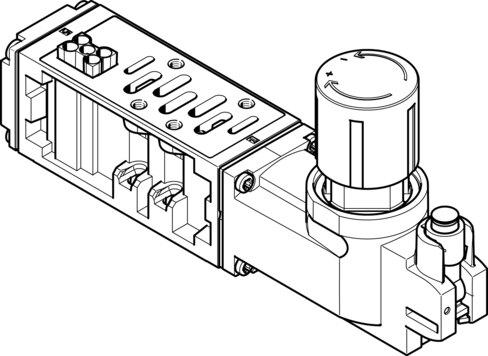

Regulator plate VABF-S2-2-R6C2-C-6
The Festo part number 555781 is an industrial component featuring a width of 54 mm and a pneumatic vertical stacking pressure regulator for two reversible functions, built on the ISO 5599-2 norm with any mounting position. It provides constant output pressure with secondary exhausting, an inlet pressure of 0.5 bar to 10 bar (0.05 MPa to 1 MPa, 7.25 psi to 145 psi), and a pressure regulation range of 0.5 bar to 60 bar (0.05 MPa to 6 MPa, 7.25 psi to 870 psi). The unit operates with compressed air as per ISO 8573-1:2010 [7:4:4] allowing oil lubrication, weighs 1230 g, achieves IP65 and NEMA 4 protection, and mounts on a manifold sub-base or individual sub-base with an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555781
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555781.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 54 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 2 reversible
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range MPa
- 0.05 MPa...6 MPa
- Pressure regulation range
- 0.5 bar...60 bar
- Pressure regulation range psi
- 7.25 psi...870 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- Inlet pressure 1 MPa
- 0.05 MPa...1 MPa
- Inlet pressure 1 psi
- 7.25 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 1230 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555781. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
