Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

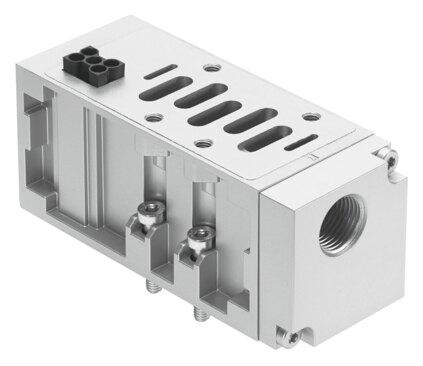

Reference imageConfirm configuration by manufacturer part number.
Festo
555786
Vertical pressure supply plate VABF-S2-2-P1A3-G12
The Festo 555786 is an industrial component designed for pneumatic vertical stacking, providing an alternative pressure supply for port 1 based on the ISO 5599-2 norm with a width of 54 mm and a G1/2 pneumatic connection 1. It delivers a normal nominal flow rate of 2800 l/min across an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and supports ambient temperatures from -5 °C to 50 °C with an IP65 and NEMA 4 degree of protection. Weighing 605 g, this unit mounts on a manifold sub-base or individual sub-base in any mounting position and operates with compressed air as per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 555786
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 555786.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 54 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pneumatic vertical stacking
- Alternative pressure supply for 1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Inlet pressure 1
- 0.5 bar...10 bar
- Inlet pressure 1 MPa
- 0.05 MPa...1 MPa
- Inlet pressure 1 psi
- 7.25 psi...145 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 2800 l/min
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 605 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pneumatic connection 1
- G1/2
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 555786. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
