Festo
556394

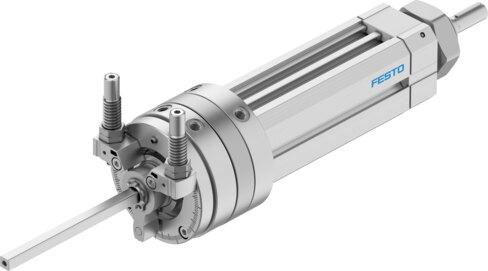

Swivel actuator unit DSL-16-25-270-CC-A-S20-B
The Festo 556394 is a double-acting rotary vane industrial component featuring a 16 mm piston diameter, 25 mm stroke, and an adjustable swivel angle ranging from 0 deg to 246 deg with a -3 deg precision adjustment. Operating at pressures between 2.5 bar and 8 bar on compressed air conforming to ISO 8573-1:2010 [7:4:4], it utilizes pneumatic shock absorbers and elastic cushioning rings at both ends alongside a plain bearing-guide for torsion protection. This model includes a through, hollow piston rod, position sensing via proximity switch, a repetition accuracy of 0.1 deg, and supports oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556394
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556394.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cushioning angle
- 15 deg
- Adjustment range of swivel angle
- 0 deg...246 deg
- Stroke
- 25 mm
- Piston diameter
- 16 mm
- Swivel angle
- 0 deg...246 deg
- Cushioning
- Pneumatic shock absorber at both ends | Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Precision adjustment
- -3 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Variants
- Through, hollow piston rod
- Protection against torsion/guide
- With plain bearing-guide
- Operating pressure
- 2.5 bar...8 bar
- Max. impact velocity
- 500 mm/s
- Max. swivel frequency at 6 bar
- 1.5 Hz
- Swivel angle backlash
- 2 deg
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Dynamic load torque
- 0.1 Nm
- Theoretical force at 6 bar, retracting
- 73.5 N
- Theoretical force at 6 bar, advancing
- 102.5 N
- Theoretical torque at 6 bar
- 1.25 Nm
- Permissible mass moment of inertia
- 0.0007 kgm²
- Product weight
- 780 g
- Basic weight with 0 mm stroke
- 697 g
- Additional weight per 10 mm stroke
- 33 g
