Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
5564

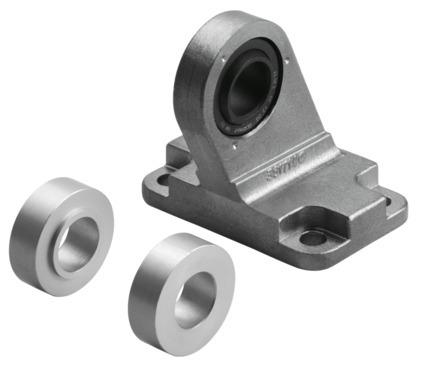

Clevis foot LSN-63
The Festo 5564 is an industrial component featuring a size 63 designation and a maximum load capacity of 4 kN with a product weight of 472 g. Its construction incorporates spheroidal graphite cast iron mounting material, a wrought aluminum alloy bushing, and a steel and PTFE rod end bearing, supported by RoHS compliant materials. This unit operates within an ambient temperature range of -40 °C to 120 °C while maintaining a corrosion resistance class of CRC 1 for low corrosion stress and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5564
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5564.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...120 °C
- Max. load capacity
- 4 kN
- Product weight
- 472 g
- Note on materials
- RoHS compliant
- Mounting material
- Spheroidal graphite cast iron
- Bushing material
- Wrought aluminum alloy
- Rod end bearing material
- Steel | PTFE
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5564. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
