Festo
556570

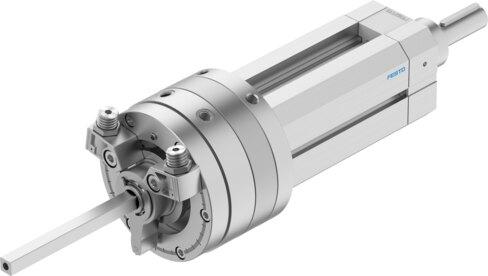

Swivel actuator unit DSL-40-160-270-P-A-S2-B
The Festo 556570 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 160 mm stroke, and a swivel angle ranging from 0 degrees to 272 degrees with a 0 degree to 270 degree adjustment range. This unit operates on compressed air as per ISO 8573-1:2010 [7:4:4] at pressures between 2.5 bar and 8 bar, utilizing elastic cushioning rings or pads at both ends, a plain bearing-guide for torsion protection, and a through piston rod variant. It achieves a maximum swivel frequency of 2 Hz at 6 bar, a max impact velocity of 500 mm/s, a 2 degree swivel angle backlash, a 1 degree repetition accuracy, and a -6 degree precision adjustment with position sensing via proximity switch in any mounting position under CRC 1 low corrosion stress. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556570
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556570.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Adjustment range of swivel angle
- 0 deg...270 deg
- Stroke
- 160 mm
- Piston diameter
- 40 mm
- Swivel angle
- 0 deg...272 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Variants
- Through piston rod
- Protection against torsion/guide
- With plain bearing-guide
- Operating pressure
- 2.5 bar...8 bar
- Max. impact velocity
- 500 mm/s
- Max. swivel frequency at 6 bar
- 2 Hz
- Swivel angle backlash
- 2 deg
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Dynamic load torque
- 1.1 Nm
- Theoretical force at 6 bar, retracting
- 495 N
- Theoretical force at 6 bar, advancing
- 660 N
- Theoretical torque at 6 bar
- 20 Nm
- Permissible mass moment of inertia
- 0.00024 kgm²
- Product weight
- 7870 g
- Basic weight with 0 mm stroke
- 5150 g
- Additional weight per 10 mm stroke
- 170 g
- Type of mounting
- Alternatively: | Clamped in T slot
