Festo
5566

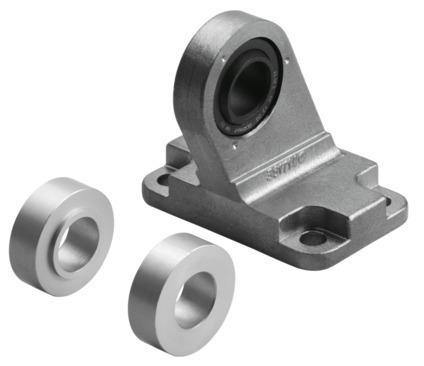

Clevis foot LSN-100
The Festo 5566 industrial component features a size 100 specification with a maximum load capacity of 9 kN and a product weight of 1166 g. Constructed with a spheroidal graphite cast iron mounting material, a wrought aluminum alloy bushing, and a steel and PTFE rod end bearing, this RoHS-compliant part offers a CRC rating of 1 for low corrosion stress and VDMA24364-B2-L LABS conformity. It operates within an ambient temperature range of -40 °C to 120 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5566
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5566.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...120 °C
- Max. load capacity
- 9 kN
- Product weight
- 1166 g
- Note on materials
- RoHS compliant
- Mounting material
- Spheroidal graphite cast iron
- Bushing material
- Wrought aluminum alloy
- Rod end bearing material
- Steel | PTFE
