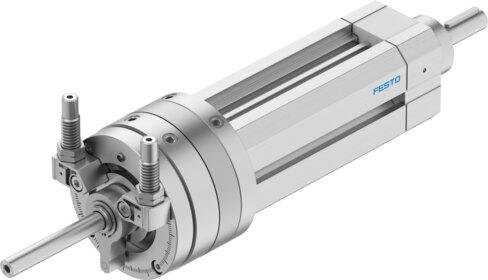

Name: Festo 556670 Swivel actuator unit DSL-25-50-270-CC-A-S20-KF-B
Brand: Festo

Swivel actuator unit DSL-25-50-270-CC-A-S20-KF-B

The Festo part number 556670 is a double-acting industrial component featuring a rotary vane structural design with a 25 mm piston diameter, a 50 mm stroke, and a ball bearing-guided mechanism providing torsion protection. This unit operates at a pressure range of 2.5 bar to 8 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and required for continued operation. It delivers an adjustable swivel angle from 0 deg to 246 deg, a -3 deg precision adjustment, a 10 deg cushioning angle, a 0.05 deg swivel angle backlash, and a 0.1 deg repetition accuracy, utilizing pneumatic shock absorbers and elastic cushioning rings at both ends. Position sensing is accomplished via a proximity switch, supporting a maximum impact velocity of 500 mm/s, a maximum swivel frequency of 1 Hz at 6 bar, and incorporating a through, hollow piston rod in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 556670
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 556670.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Cushioning angle: 10 deg
Adjustment range of swivel angle: 0 deg...246 deg
Stroke: 50 mm
Piston diameter: 25 mm
Swivel angle: 0 deg...246 deg
Cushioning: Pneumatic shock absorber at both ends | Elastic cushioning rings/pads at both ends
Mounting position: Any
Precision adjustment: -3 deg
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: Via proximity switch
Variants: Through, hollow piston rod
Protection against torsion/guide: Ball bearing-guided
Operating pressure: 2.5 bar...8 bar
Max. impact velocity: 500 mm/s
Max. swivel frequency at 6 bar: 1 Hz
Swivel angle backlash: 0.05 deg
Repetition accuracy: 0.1 deg
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -10 °C...60 °C
Dynamic load torque: 0.7 Nm
Theoretical force at 6 bar, retracting: 173.5 N
Theoretical force at 6 bar, advancing: 248 N
Theoretical torque at 6 bar: 5 Nm
Permissible mass moment of inertia: 0.0016 kgm²
Product weight: 2090 g
Basic weight with 0 mm stroke: 1755 g
Additional weight per 10 mm stroke: 67 g
