Festo
556690

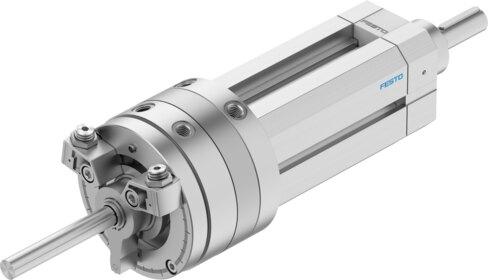

Swivel actuator unit DSL-32-25-270-P-A-S2-KF-B
The Festo 556690 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 25 mm stroke, and an adjustable swivel angle ranging from 0 deg to 270 deg with a -6 deg precision adjustment and 0.05 deg swivel angle backlash. Built with ball bearing-guided torsion protection, elastic cushioning rings at both ends, and proximity switch position sensing, this unit operates within a pressure range of 2.5 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. It delivers a maximum impact velocity of 500 mm/s and a max swivel frequency of 2 Hz at 6 bar in any mounting position, while possessing a corrosion resistance class of CRC 1. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556690
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556690.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Adjustment range of swivel angle
- 0 deg...270 deg
- Stroke
- 25 mm
- Piston diameter
- 32 mm
- Swivel angle
- 0 deg...272 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Variants
- Through piston rod
- Protection against torsion/guide
- Ball bearing-guided
- Operating pressure
- 2.5 bar...8 bar
- Max. impact velocity
- 500 mm/s
- Max. swivel frequency at 6 bar
- 2 Hz
- Swivel angle backlash
- 0.05 deg
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Dynamic load torque
- 1 Nm
- Theoretical force at 6 bar, retracting
- 294 N
- Theoretical force at 6 bar, advancing
- 403.5 N
- Theoretical torque at 6 bar
- 10 Nm
- Permissible mass moment of inertia
- 0.00017 kgm²
- Product weight
- 3538 g
- Basic weight with 0 mm stroke
- 3265 g
- Additional weight per 10 mm stroke
- 109 g
- Type of mounting
- Alternatively: | Clamped in T slot
