Festo
556750

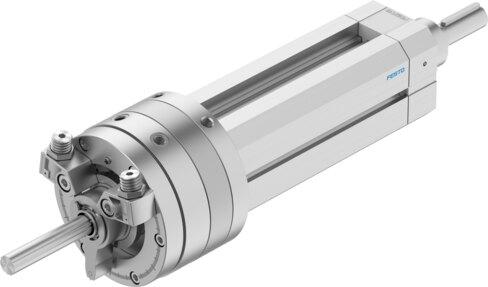

Swivel actuator unit DSL-40-100-270-P-A-S2-KF-B
The Festo 556750 is a double-acting industrial component featuring a rotary vane structural design with a 40 mm piston diameter, a 100 mm stroke, and a ball bearing-guided mechanism providing torsion protection. This unit operates at a pressure range of 2.5 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:4:4], incorporating elastic cushioning rings at both ends and position sensing via a proximity switch. It delivers an adjustable swivel angle from 0 deg to 270 deg (totaling up to 272 deg) with a -6 deg precision adjustment, 0.05 deg swivel angle backlash, 1 deg repetition accuracy, a maximum impact velocity of 500 mm/s, and a maximum swivel frequency of 2 Hz at 6 bar. Featuring a through piston rod variant and corrosion resistance class 1, the device permits oil lubrication for operating media. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556750
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556750.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Adjustment range of swivel angle
- 0 deg...270 deg
- Stroke
- 100 mm
- Piston diameter
- 40 mm
- Swivel angle
- 0 deg...272 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Variants
- Through piston rod
- Protection against torsion/guide
- Ball bearing-guided
- Operating pressure
- 2.5 bar...8 bar
- Max. impact velocity
- 500 mm/s
- Max. swivel frequency at 6 bar
- 2 Hz
- Swivel angle backlash
- 0.05 deg
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Dynamic load torque
- 5.4 Nm
- Theoretical force at 6 bar, retracting
- 495 N
- Theoretical force at 6 bar, advancing
- 603 N
- Theoretical torque at 6 bar
- 20 Nm
- Permissible mass moment of inertia
- 0.00024 kgm²
- Product weight
- 7050 g
- Basic weight with 0 mm stroke
- 5300 g
- Additional weight per 10 mm stroke
- 175 g
- Type of mounting
- Alternatively: | Clamped in T slot
