Festo
556769

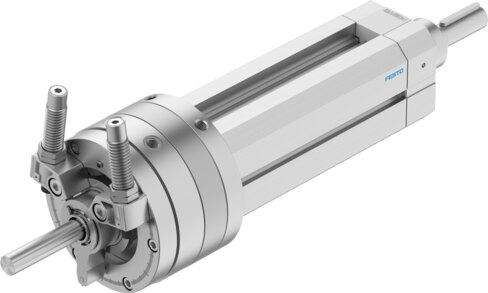

Swivel actuator unit DSL-40- -270-CC-A-S2-KF-B
The Festo 556769 is a double-acting industrial component featuring a rotary vane structural design with a 40 mm piston diameter and a stroke of 10 mm to 160 mm. This unit operates within a pressure range of 2.5 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:4:4], utilizing both pneumatic shock absorbers and elastic cushioning rings at both ends with a 16 deg cushioning angle. Equipped with a ball bearing-guided mechanism and a through piston rod, it achieves a swivel angle of 0 deg to 240 deg with a 0.1 deg repetition accuracy, -3 deg precision adjustment, and 0.05 deg swivel angle backlash. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556769
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556769.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cushioning angle
- 16 deg
- Adjustment range of swivel angle
- 0 deg...240 deg
- Stroke
- 10 mm...160 mm
- Piston diameter
- 40 mm
- Swivel angle
- 0 deg...240 deg
- Cushioning
- Pneumatic shock absorber at both ends | Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Precision adjustment
- -3 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Variants
- Through piston rod
- Protection against torsion/guide
- Ball bearing-guided
- Operating pressure
- 2.5 bar...8 bar
- Max. impact velocity
- 500 mm/s
- Max. swivel frequency at 6 bar
- 0.7 Hz
- Swivel angle backlash
- 0.05 deg
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Dynamic load torque
- 5.4 Nm
- Theoretical force at 6 bar, retracting
- 495 N
- Theoretical force at 6 bar, advancing
- 603 N
- Theoretical torque at 6 bar
- 20 Nm
- Permissible mass moment of inertia
- 0.004 kgm²
- Basic weight with 0 mm stroke
- 5355 g
- Additional weight per 10 mm stroke
- 175 g
- Type of mounting
- Alternatively:
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 556769. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
