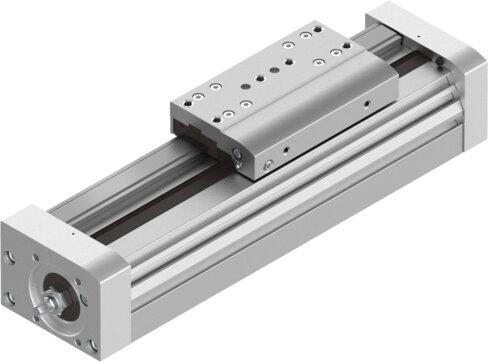

Reference imageConfirm configuration by manufacturer part number.
Festo
556807
Ball screw axis EGC-70- -BS-KF
The Festo 556807 is an electromechanical linear axis featuring a ball screw with a 12 mm screw diameter, a 10 mm/U spindle pitch, and a size 70 designation. This component utilizes a recirculating ball bearing guide and supports a working stroke ranging from 50 mm to 1000 mm in any mounting position. It achieves a maximum speed of 0.5 m/s, a maximum acceleration of 15 m/s², a repetition accuracy of ±0.02 mm, and a maximum force Fy of 1850 N with a 100% duty cycle. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556807
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556807.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...1000 mm
- Size
- 70
- Screw diameter
- 12 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 15 m/s²
- Max. speed
- 0.5 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 419000 mm⁴
- 2nd moment of area Iz
- 578000 mm⁴
- Max. force Fy
- 1850 N
- Max. force Fz
- 1850 N
- Max. force Fy total axis
- 1850 N
- Max. force Fz total axis
- 1850 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 6815 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6815 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 51 Nm...132 Nm
- Max. torque Mz
- 51 Nm...132 Nm
- Max. moment Mx total axis
- 16 Nm
- Max. moment My total axis
- 51 Nm...132 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 556807. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
