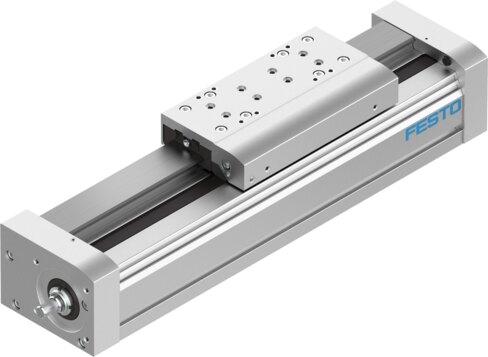

Reference imageConfirm configuration by manufacturer part number.
Festo
556811
Ball screw axis EGC-185- -BS-KF
The Festo 556811 is an electromechanical linear axis featuring a ball screw structural design with a size 185, a 40 mm screw diameter, and a 40 mm/U spindle pitch supporting a working stroke from 50 mm to 3000 mm in any mounting position. Integrated with a recirculating ball bearing guide, this unit delivers a maximum speed of 2 m/s, a maximum acceleration of 15 m/s², a repetition accuracy of ±0.02 mm, and a maximum force Fy of 15200 N under a 100% duty cycle. Operating within a temperature range of -10 °C to 60 °C, the assembly achieves an IP40 protection rating, VDMA24364-B2-L LABS conformity, and incorporates an incremental linear potentiometer measuring principle alongside compatibility with stepper and servo motors. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556811
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556811.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...3000 mm
- Size
- 185
- Screw diameter
- 40 mm
- Spindle pitch
- 40 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 15 m/s²
- Max. speed
- 2 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 26120000 mm⁴
- 2nd moment of area Iz
- 26000000 mm⁴
- Max. force Fy
- 15200 N
- Max. force Fz
- 15200 N
- Max. force Fy total axis
- 15200 N
- Max. force Fz total axis
- 15200 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 55997 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 55997 N
- Max. torque Mx
- 529 Nm
- Max. torque My
- 1157 Nm...1820 Nm
- Max. torque Mz
- 1157 Nm...1820 Nm
- Max. moment Mx total axis
- 529 Nm
- Max. moment My total axis
- 1157 Nm...1820 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 556811. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
