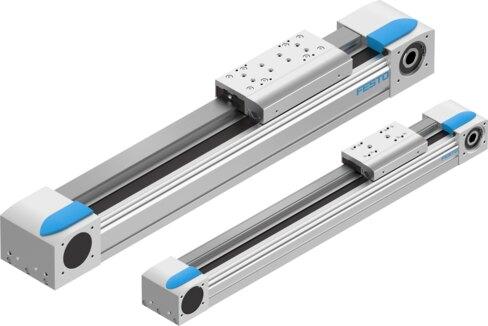

Reference imageConfirm configuration by manufacturer part number.
Festo
556812
Belt driven linear actuator EGC-50- -TB-KF
The Festo 556812 is an electromechanical linear axis featuring a toothed belt with a 2 mm pitch, an 18.46 mm drive pinion effective diameter, and a size 50 structural design with a recirculating ball bearing guide. This component delivers a working stroke between 50 mm and 1900 mm, a max speed of 3 m/s, a max acceleration of 50 m/s2, and a repetition accuracy of ±0.08 mm for a 100% duty cycle with either a stepper or servo motor in any mounting position. Certified for Zone 1, Zone 2, and Zone 21 explosive environments under ATEX, UKEX, and EPL Gb/Db standards with Ex h IIC T4 Gb gas ignition protection, it operates within an ambient temperature range of -10°C to +60°C and conforms to VDMA24364 Zone III LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556812
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556812.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 18.46 mm
- Working stroke
- 50 mm...1900 mm
- Size
- 50
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 3 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (UKEX)
- ATEX category gas
- II 2G
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 84000 mm⁴
- 2nd moment of area Iz
- 114000 mm⁴
- Max. force Fy
- 650 N
- Max. force Fz
- 650 N
- Max. force Fy total axis
- 650 N
