Name: Festo 556813 Belt driven linear actuator EGC-70- -TB-KF
Brand: Festo

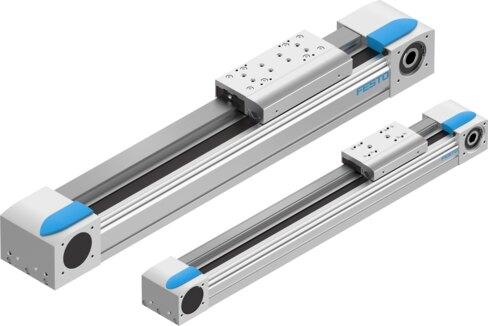

Belt driven linear actuator EGC-70- -TB-KF

The Festo part number 556813 is an electromechanical linear axis with a toothed belt featuring a size 70 design, a 24.83 mm drive pinion effective diameter, and a 3 mm toothed belt pitch. Incorporating a recirculating ball bearing guide and an incremental linear potentiometer measuring principle, this component supports a working stroke from 50 mm to 5000 mm, a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.08 mm with a 100% duty cycle in any mounting position using either a stepper or servo motor. Certified for explosive atmospheres with ATEX and UKEX compliance for gas Zone 1 and Zone 2 and dust Zone 21, the unit operates within an ambient temperature range of -10°C to +60°C under EPL Db and Gb certifications with Ex h IIC T4 Gb ignition protection. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 556813
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 556813.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 24.83 mm
Working stroke: 50 mm...5000 mm
Size: 70
Toothed belt pitch: 3 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Measuring principle of linear potentiometer: Incremental
Max. acceleration: 50 m/s²
Max. speed: 5 m/s
Repetition accuracy: ±0.08 mm
Duty cycle: 100%
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (UKEX)
ATEX category gas: II 2G
Type of ignition protection for gas: Ex h IIC T4 Gb
Explosive ambient temperature: -10°C <= Ta <= +60°C
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
2nd moment of area Iy: 395000 mm⁴
2nd moment of area Iz: 577000 mm⁴
Max. force Fy: 1850 N
Max. force Fz: 1850 N
