Festo
556814

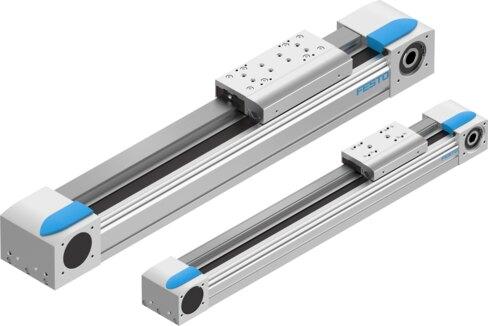

Belt driven linear actuator EGC-80- -TB-KF
The Festo 556814 is an electromechanical linear axis featuring a toothed belt drive, a size 80 frame, a 28.65 mm drive pinion effective diameter, and a working stroke ranging from 50 mm to 8500 mm. Built with a recirculating ball bearing guide and an incremental linear potentiometer measuring principle, it supports stepper or servo motors with a max acceleration of 50 m/s², a max speed of 5 m/s, a ±0.08 mm repetition accuracy, and a 100% duty cycle in any mounting position. Certified for explosive environments in ATEX Zone 1, Zone 2, and Zone 21 as well as UKEX Zone 1 and Zone 21, this component carries II 2G gas ATEX categorization and Ex h IIC T4 Gb gas ignition protection for ambient operating temperatures between -10°C and +60°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556814
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556814.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 28.65 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 80
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (UKEX)
- ATEX category gas
- II 2G
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 844000 mm⁴
- 2nd moment of area Iz
- 116000000 mm⁴
- Max. force Fy
- 3050 N
- Max. force Fz
- 3050 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 556814. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
