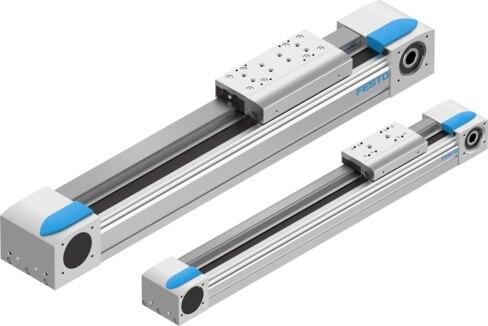

Reference imageConfirm configuration by manufacturer part number.
Festo
556815
Belt driven linear actuator EGC-120- -TB-KF
The Festo 556815 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a size 120 designation, and a 39.79 mm drive pinion effective diameter with a working stroke ranging from 50 mm to 8500 mm. Built with a recirculating ball bearing guide, this component operates on either a stepper or servo motor and utilizes an incremental linear potentiometer measuring principle while achieving a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.08 mm, and a 100% duty cycle in any mounting position. Certified for explosive atmospheres in ATEX and UKEX Zone 1, Zone 2, and Zone 21, it carries CE and UKCA markings, an EPL Db and Gb classification, an II 2G gas category, and an Ex h IIC T4 Gb ignition protection type for gas within an ambient temperature range of -10°C to +60°C. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556815
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556815.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 39.79 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 120
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (UKEX)
- ATEX category gas
- II 2G
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 4620000 mm⁴
- 2nd moment of area Iz
- 5650000 mm⁴
- Max. force Fy
- 6890 N
- Max. force Fz
- 6890 N
