Festo
556817

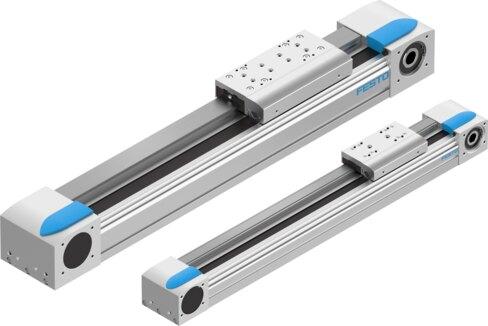

Belt driven linear actuator EGC-185- -TB-KF
The Festo 556817 is an electromechanical linear axis featuring a toothed belt with an 8 mm pitch, a drive pinion effective diameter of 73.85 mm, and a size 185 structural design with a recirculating ball bearing guide. This component supports a working stroke ranging from 50 mm to 8500 mm in any mounting position, driven by either a stepper or servo motor with an incremental linear potentiometer measuring principle. It delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.1 mm, a 100% duty cycle, and maximum forces of 15200 N for both Fy and Fz. Operating within an ambient temperature range of -10 °C to 60 °C, the unit features an IP40 degree of protection, VDMA24364 Zone III LABS conformity, and 2nd moments of area Iy and Iz of 2340000000 mm⁴ and 2740000000 mm⁴, respectively. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556817
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556817.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 73.85 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 185
- Toothed belt pitch
- 8 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 2340000000 mm⁴
- 2nd moment of area Iz
- 2740000000 mm⁴
- Max. force Fy
- 15200 N
- Max. force Fz
- 15200 N
- Max. force Fy total axis
- 15200 N
- Max. force Fz total axis
- 15200 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 55997 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 55997 N
- Max. no-load resistance to shifting
- 110 N
- Max. torque Mx
- 529 Nm
- Max. torque My
- 1157 Nm...1820 Nm
- Max. torque Mz
- 1157 Nm...1820 Nm
- Max. moment Mx total axis
- 529 Nm
- Max. moment My total axis
- 1157 Nm...1820 Nm
