Festo
556821

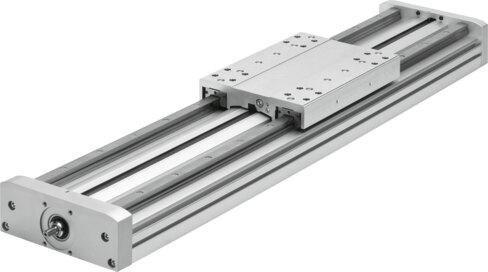

Ball screw axis EGC-HD-220- -BS
The Festo 556821 is an electromechanical linear axis featuring a ball screw with a 25 mm screw diameter, a size 220 profile, and an adjustable working stroke ranging from 50 mm to 2400 mm. Integrated with a recirculating ball bearing guide, this unit accommodates either a stepper or servo motor, achieves a max speed of 1.5 m/s, delivers a max acceleration of 15 m/s², and maintains a repetition accuracy of ±0.02 mm with a 100% duty cycle. It operates within an ambient temperature range of -10 °C to 60 °C, provides IP40 protection, adheres to VDMA24364 Zone III LABS conformity, and withstands maximum forces of 13000 N for both Fy and Fz with second moments of area Iy at 5570000 mm⁴ and Iz at 35200000 mm⁴ in any mounting position. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556821
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556821.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...2400 mm
- Size
- 220
- Screw diameter
- 25 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 15 m/s²
- Max. speed
- 1.5 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 5570000 mm⁴
- 2nd moment of area Iz
- 35200000 mm⁴
- Max. force Fy
- 13000 N
- Max. force Fz
- 13000 N
- Max. force Fy total axis
- 13000 N
- Max. force Fz total axis
- 13000 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 47892 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 47892 N
- Max. torque Mx
- 900 Nm
- Max. torque My
- 1450 Nm
- Max. torque Mz
- 1450 Nm
- Max. moment Mx total axis
- 900 Nm
- Max. moment My total axis
- 1450 Nm
- Max. moment Mz total axis
- 1450 Nm
