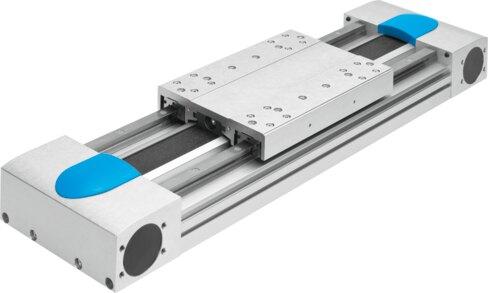

Reference imageConfirm configuration by manufacturer part number.
Festo
556823
Belt driven linear actuator EGC-HD-125- -TB
The Festo 556823 is an electromechanical linear axis featuring a toothed belt with a 3 mm pitch, a 32.47 mm drive pinion effective diameter, and an integrated recirculating ball bearing guide. This Size 125 component supports a working stroke from 50 mm to 3000 mm in any mounting position while operating with an incremental linear potentiometer, a 100% duty cycle, and compatibility with stepper or servo motors. It delivers a maximum speed of 3 m/s, a maximum acceleration of 40 m/s², a maximum driving torque of 7.2 Nm, and a maximum force Fy of 3650 N within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this IP40-rated unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556823
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556823.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 32.47 mm
- Working stroke
- 50 mm...3000 mm
- Size
- 125
- Toothed belt elongation
- 0.31 %
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 40 m/s²
- Max. speed
- 3 m/s
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 689000 mm⁴
- 2nd moment of area Iz
- 4090000 mm⁴
- Max. driving torque
- 7.2 Nm
- Max. force Fy
- 3650 N
- Max. force Fz
- 3650 N
- Max. force Fy total axis
- 3650 N
- Max. force Fz total axis
- 3650 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 13446 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 13446 N
- Max. no-load resistance to shifting
- 67.8 N
- Max. torque Mx
- 140 Nm
- Max. torque My
- 275 Nm
- Max. torque Mz
- 275 Nm
- Max. moment Mx total axis
- 140 Nm
