Festo
556824

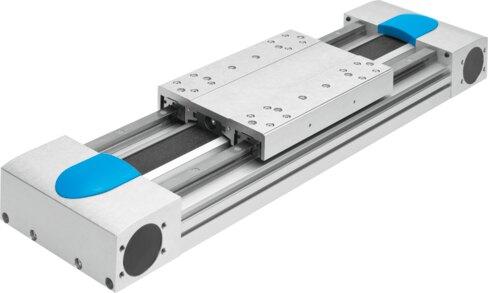

Belt driven linear actuator EGC-HD-160- -TB
The Festo 556824 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a 39.79 mm drive pinion effective diameter, and a working stroke range of 50 mm to 5000 mm in any mounting position. Integrated with a recirculating ball bearing guide and an incremental linear potentiometer measuring principle, this size 160 unit supports both stepper and servo motors while delivering a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², a maximum driving torque of 20 Nm, and a maximum force Fy of 5600 N at a 100% duty cycle. It provides 2nd moments of area Iy of 129000000 mm⁴ and Iz of 989000000 mm⁴, VDMA24364 Zone III LABS conformity, an IP40 degree of protection, and an ambient temperature range of -10 °C to 60 °C with a toothed belt elongation of 0.23%. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556824
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556824.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 39.79 mm
- Working stroke
- 50 mm...5000 mm
- Size
- 160
- Toothed belt elongation
- 0.23 %
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 129000000 mm⁴
- 2nd moment of area Iz
- 989000000 mm⁴
- Max. driving torque
- 20 Nm
- Max. force Fy
- 5600 N
- Max. force Fz
- 5600 N
- Max. force Fy total axis
- 5600 N
- Max. force Fz total axis
- 5600 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 20630 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 20630 N
- Max. no-load resistance to shifting
- 105.5 N
- Max. torque Mx
- 300 Nm
- Max. torque My
- 500 Nm
- Max. torque Mz
- 500 Nm
- Max. moment Mx total axis
- 300 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 556824. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
