Festo
556825

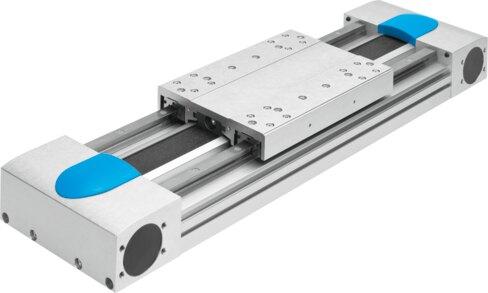

Belt driven linear actuator EGC-HD-220- -TB
The Festo 556825 is an electromechanical linear axis featuring a toothed belt with an 8 mm pitch, a 66.21 mm effective drive pinion diameter, and a size 220 structural design incorporating a recirculating ball bearing guide. This unit accommodates either a stepper or servo motor and delivers a working stroke ranging from 50 mm to 4750 mm, a maximum acceleration of 50 m/s², a top speed of 5 m/s, and a 100% duty cycle with incremental linear potentiometer measurement. It operates within an ambient temperature range of -10 °C to 60 °C, achieves a maximum driving torque of 59.58 Nm alongside a maximum force Fy of 13000 N, and complies with VDMA24364 Zone III LABS conformity with an IP40 degree of protection. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556825
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556825.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 66.21 mm
- Working stroke
- 50 mm...4750 mm
- Size
- 220
- Toothed belt elongation
- 0.29 %
- Toothed belt pitch
- 8 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 558000000 mm⁴
- 2nd moment of area Iz
- 3510000000 mm⁴
- Max. driving torque
- 59.58 Nm
- Max. force Fy
- 13000 N
- Max. force Fz
- 13000 N
- Max. force Fy total axis
- 13000 N
- Max. force Fz total axis
- 13000 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 47892 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 47892 N
- Max. no-load resistance to shifting
- 123.8 N
- Max. torque Mx
- 900 Nm
- Max. torque My
- 1450 Nm
- Max. torque Mz
- 1450 Nm
- Max. moment Mx total axis
- 900 Nm
